Model: CBC

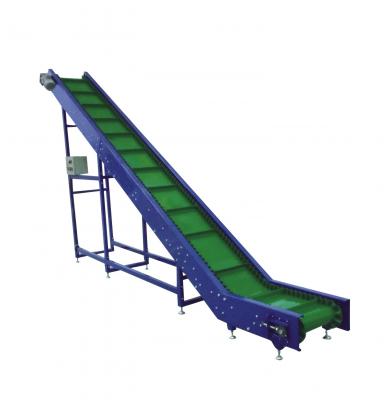

This conveyor is usually formed in a tilted way to transfer loose-packed items or goods in bulk. It also makes true possible transfering in a big inclined angle with belt baffles and skirts. It intends to:

* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

*Loose-packed items tranfering between two different heights like floors usually in warehouses;
*Items transfering in big inclination

Features:

Little noise, simple structure and easy to maintain, low energy consumption

Relative Products:

Inclined Belt Conveyor

Lineal Belt Conveyor

More conveyors available, please ASK US if you're looking for something else.

Common Technical Parameters:

Items	Options
Conveyor Form	Tilted in a fixed height
Belt Type	PVC or PU belt with baffles or skirts, plastic modular with baffles, etc
Frame Material	Painted carbon steel, Powder coated carbon steel, Stainless steel, Aluminum profile, etc
Inclination	Optional
Conveyor Width	0ptional, 600mm effective as a factory standard
Conveyor Height	Optional in lower end and higher end heights
Belt Thickness	Optional
Side Frame Overheight	Optional, sometimes with skirts
Speed	Constant or variable, 10-20m/min as a factory standard
Belt Direction	Usually unidirectional
Capacity	Optional, usually light duty

P.S.: For customized conveyors, please fulfil " INFORMATION COLLECTION " file with an inquiry.

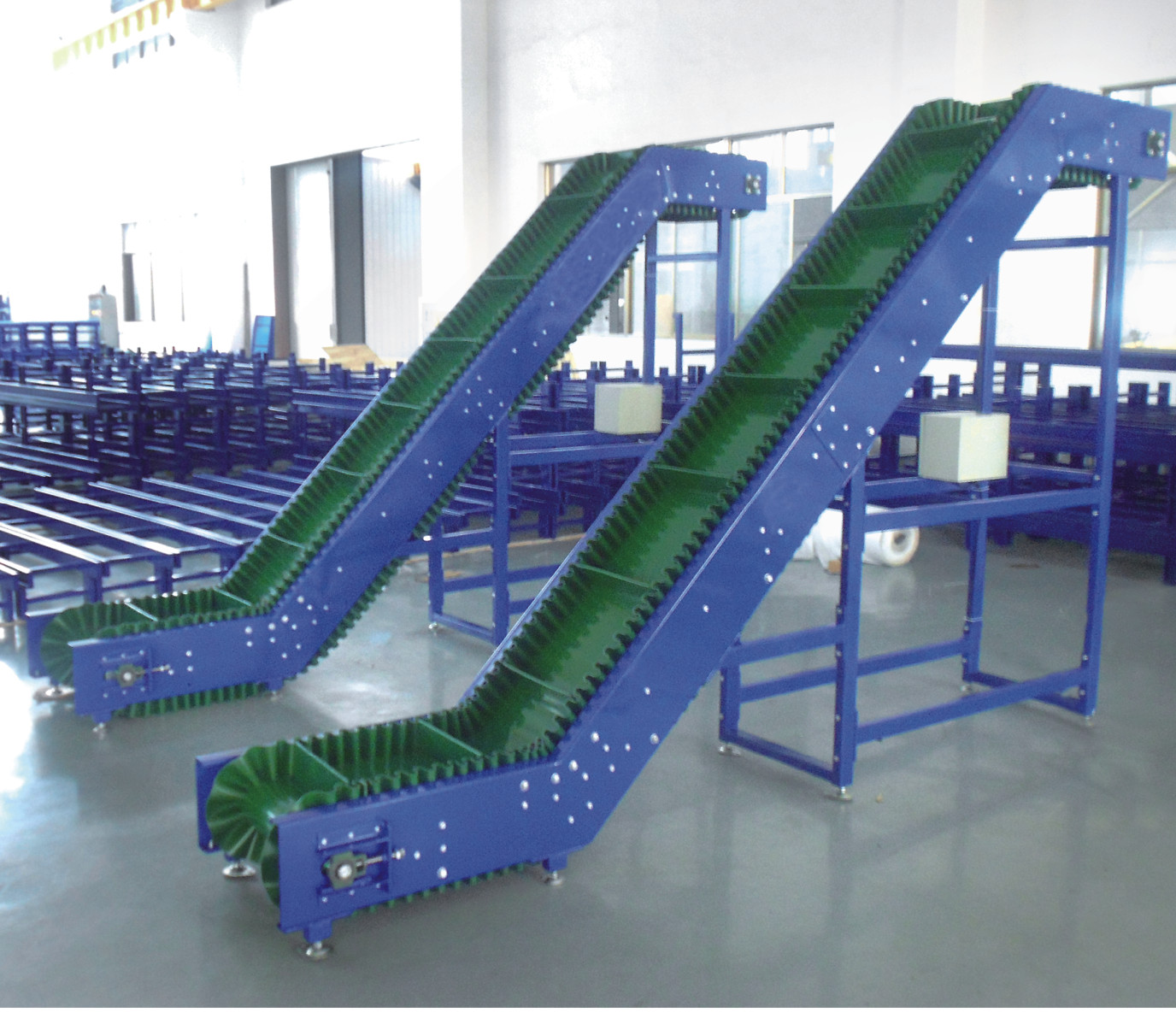

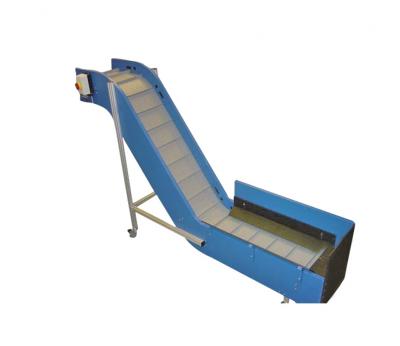

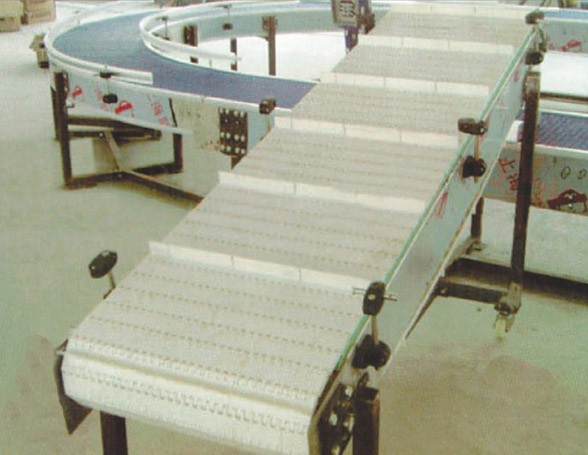

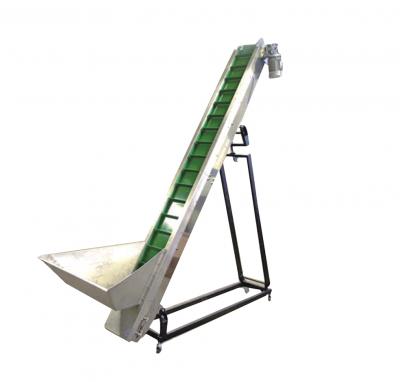

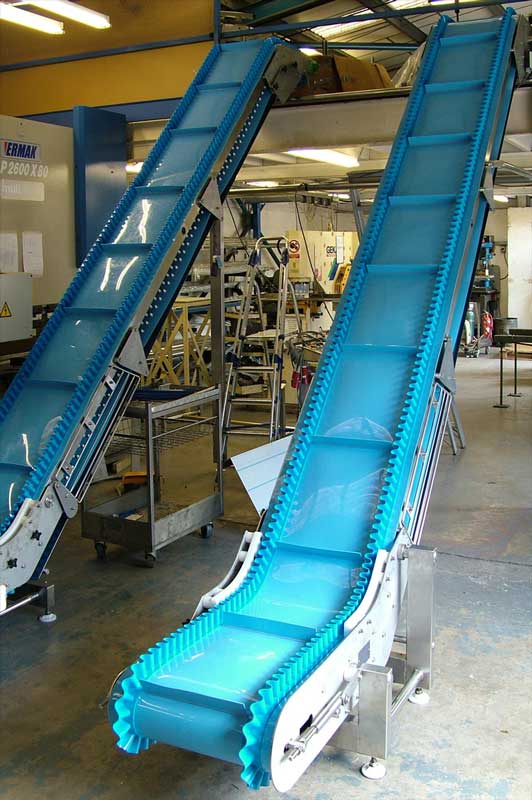

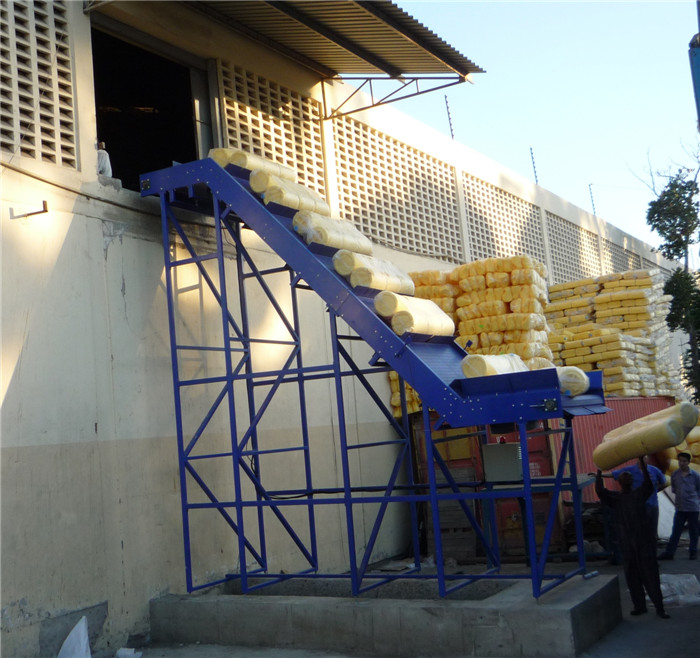

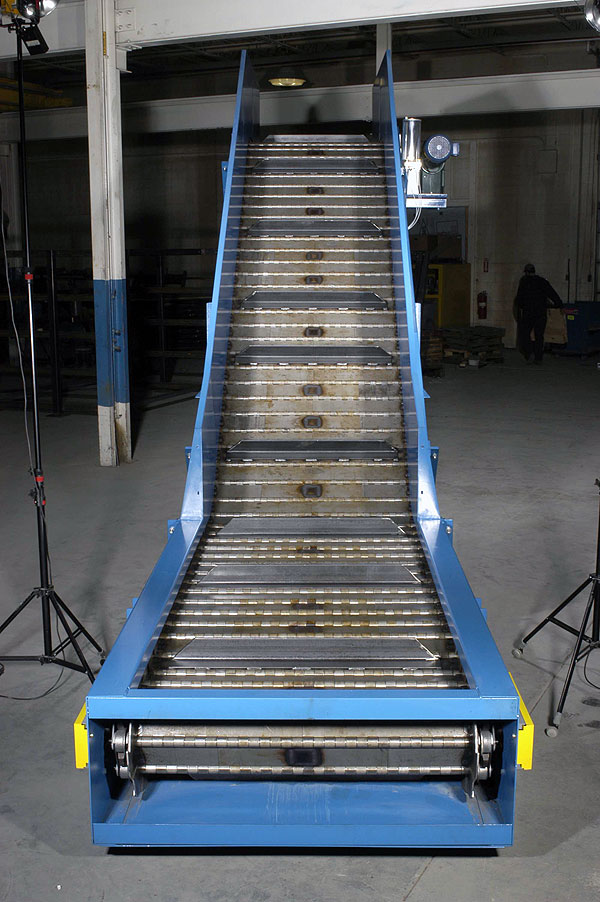

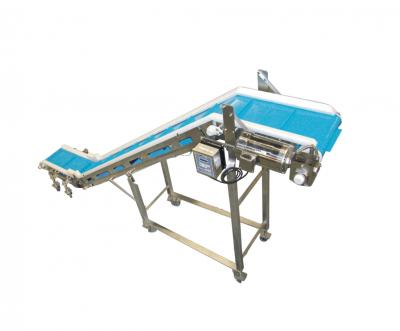

More Pictures for Reference
